Laser Welding

mould laser welding machine

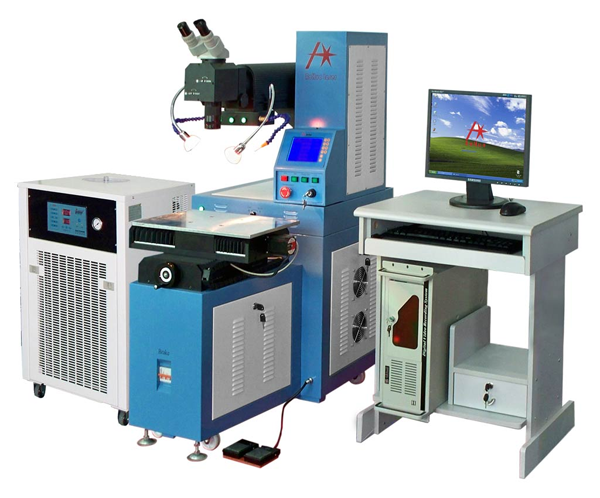

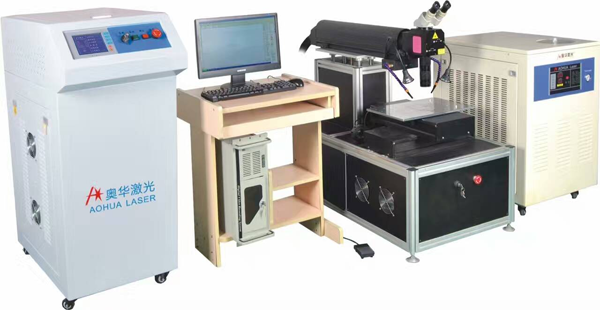

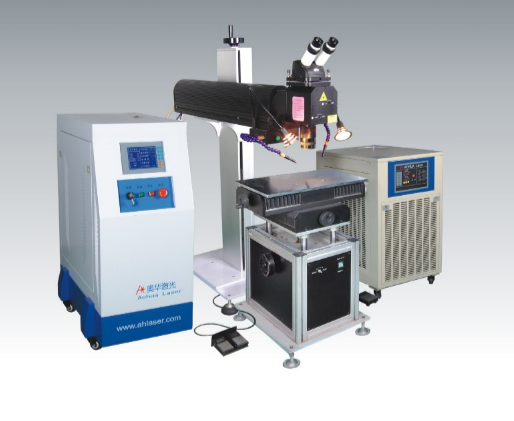

 Mould laser welding machine



Application
Plastic mold, forging die, stamping mold, diecasting mould and so on. Widely used in mobile phone, digital product, automobile, motorcycle mold making and molding industry.







Advantages:
1.Laser control system: AHL-W2220IV mold welder is under the control of double closed loop by inside improved industrial controlling micro-computer so the stability and the running ability surpass products that controlled by monolithic integrated circuit. The laser controlling system can control the power source profile precisely pre-set optimized.

2.Gas protecting system: synchronous argon protecting system controlled by micro-computer act better, it make the welding connection even firmer and artistic. Being controlled to keep synchronous transmission with laser can save the argon at the highest level.

3.Observing system: It's equipped with special-purpose microscope observing system with cross cursor. It has high speed electron flitting device to protect the operator's eyes from being hurt.
Specifications

Model:

AHL - W220IV

AHL - W400IV

Max. laser power:

220W

400W

Laser wavelength:

1064nm

1064nm

Max. energy per pulse:

90J

110J

Laser welding depth:

0.1 每 1.0mm

0.1 每 1.6mm

Pulse width:

0.2 每 20ms

0.2 每 20ms

Continuous welding frequency:

0.5 每 20HZ

0.5 每 40HZ

Adjustable facula size:

0.2 每 2mm

0.2 每 2mm

Laser welding wire:

±0.2 - ±0.4mm

±0.2 - ±0.8mm

Power consumption:

≒7KW

≒12KW

Electrical connection:

220V㊣10%/50HZ/40A

380V㊣10%/50HZ/40A

Standard worktable:

X Y 每 manual, Z - electric

X Y 每 manual, Z - electric

Positioning:

microscope/CCD optional

microscope/CCD optional

Vertical distance of laser:

fixed 300mm

fixed 300mm

Axial rotation of laser:

90

90

Horizontal distance of laser:

X Y electrical

X Y electrical
